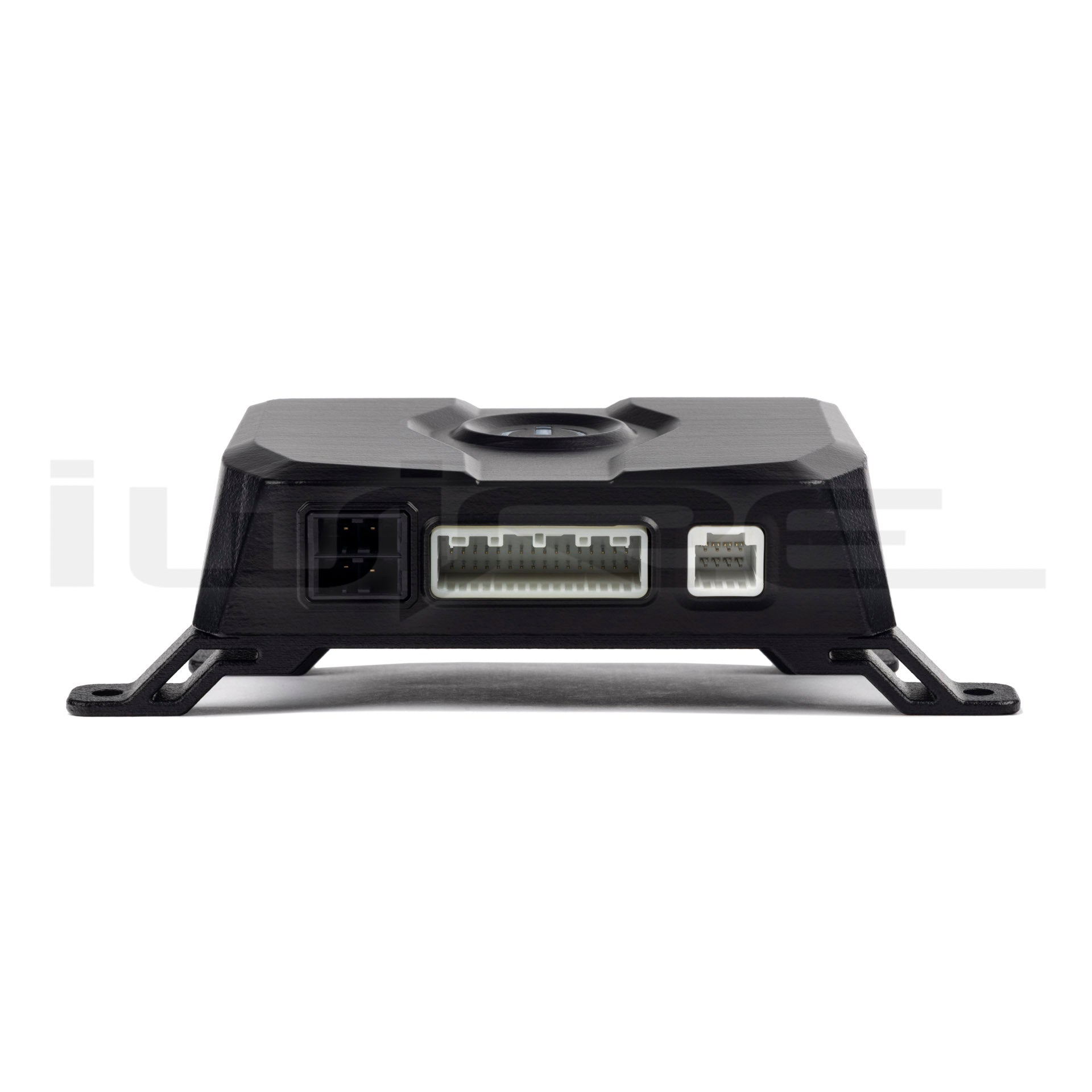

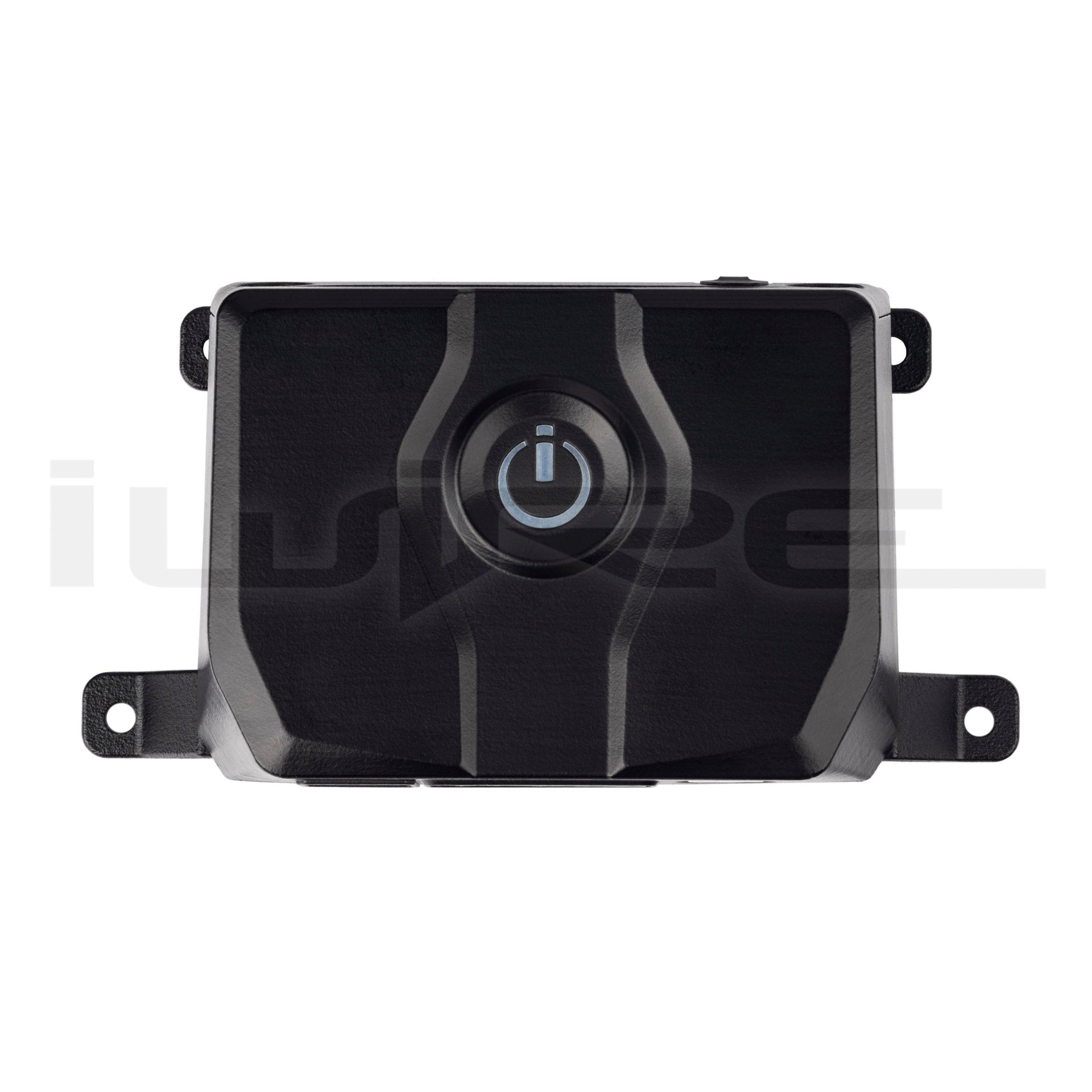

2002-2007 WRX iDCCD Pre-Order

2002 - 2007 WRX Models, here we come! Shipping by 10.31.25.

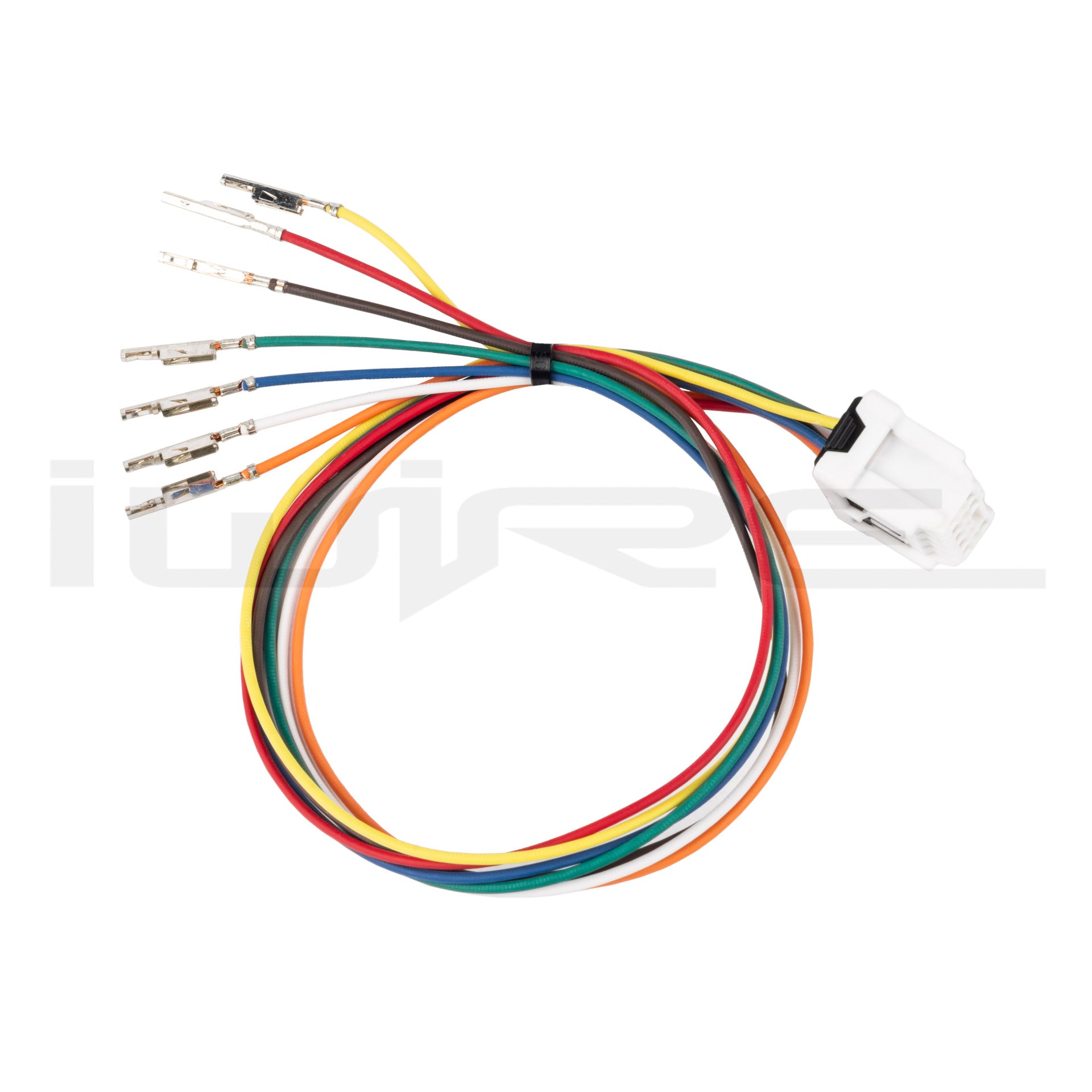

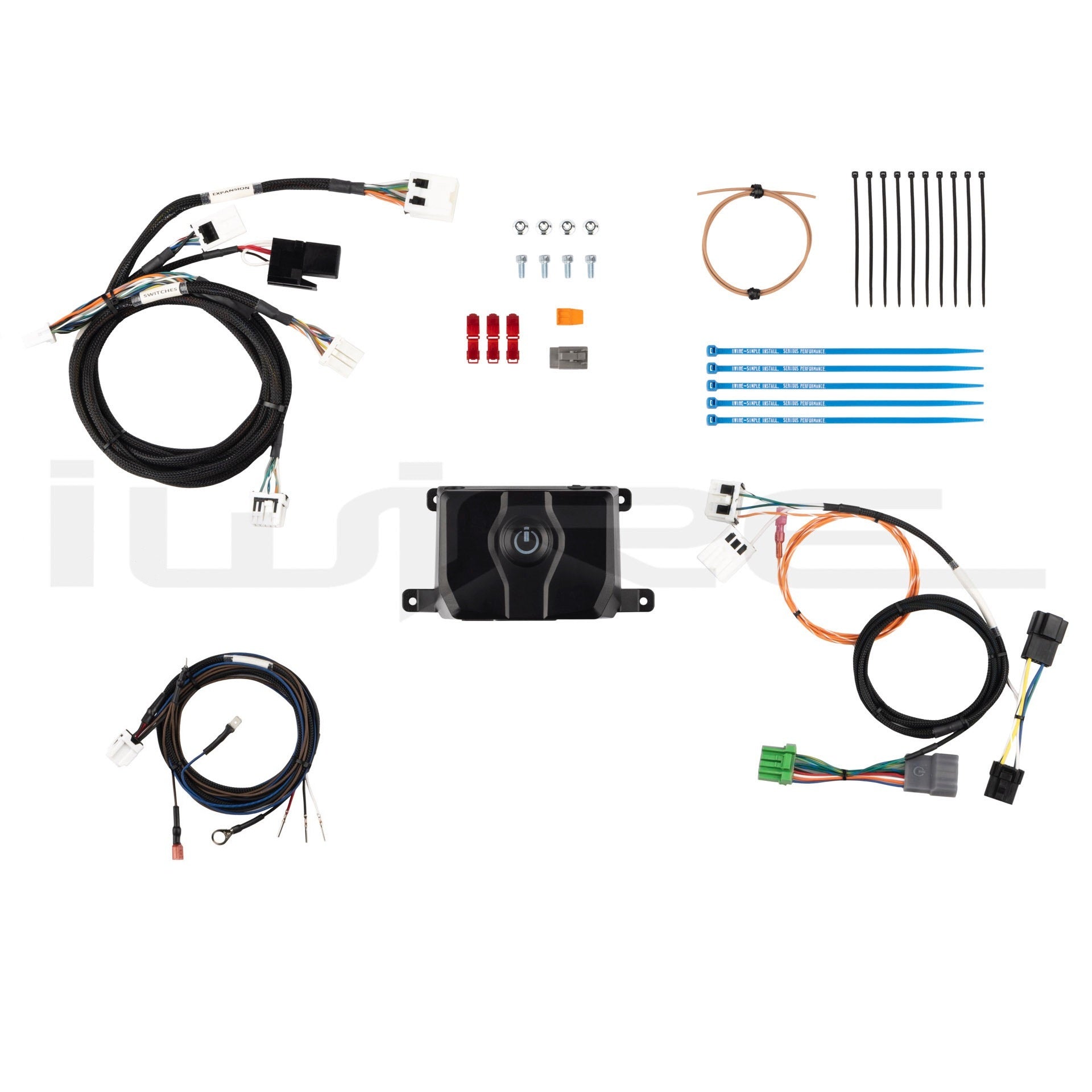

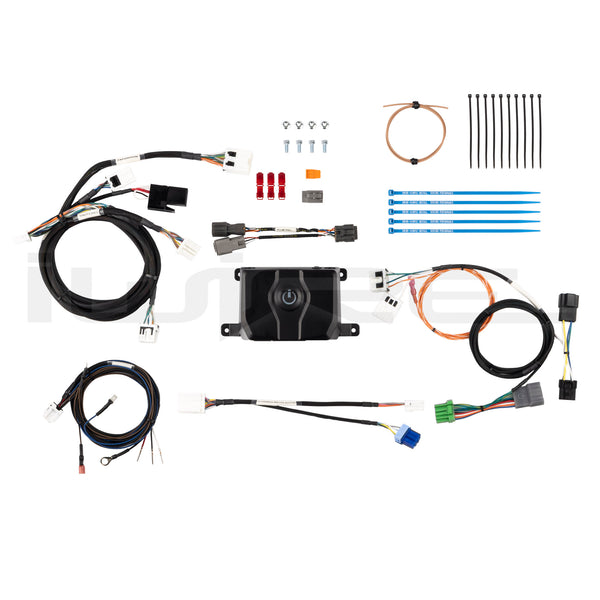

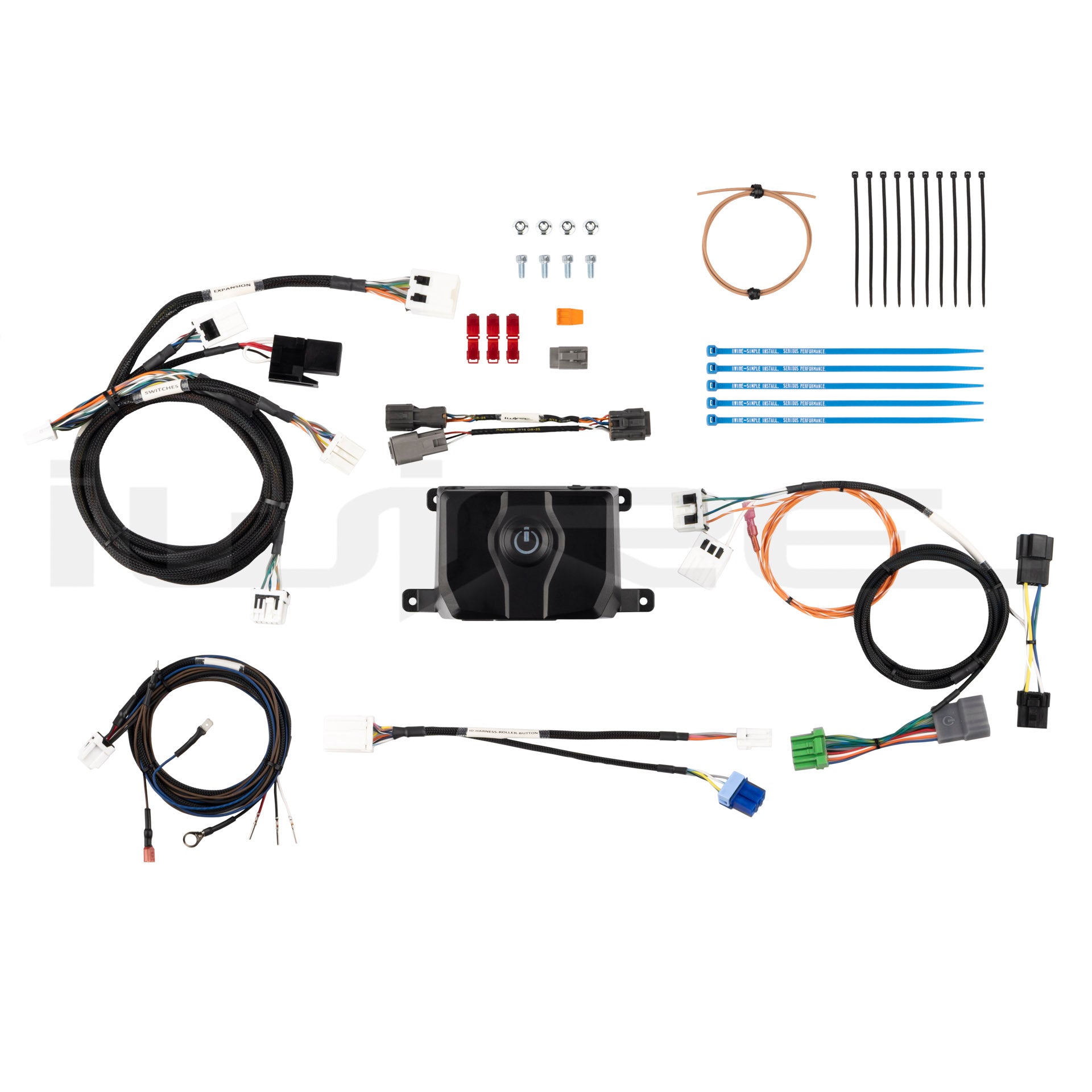

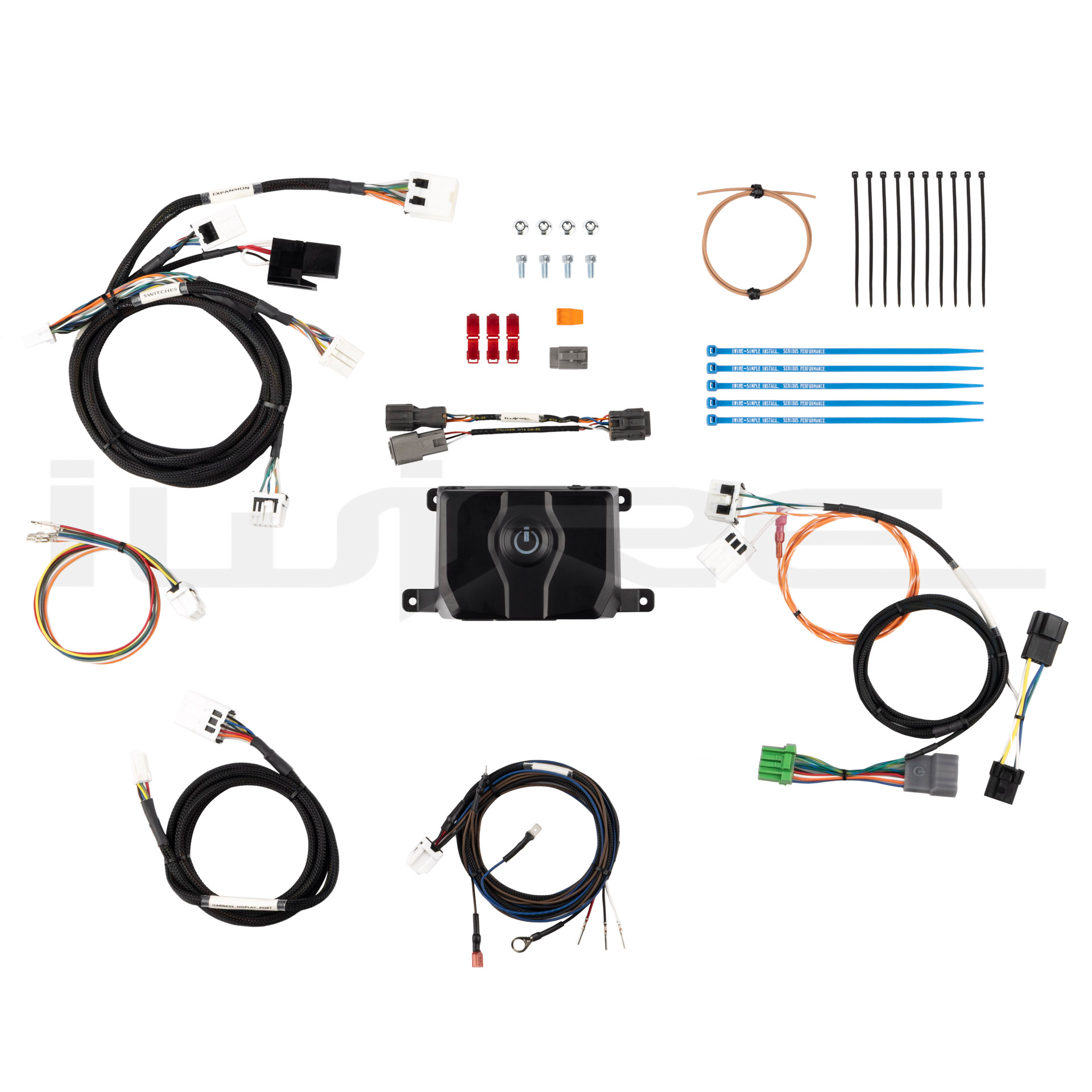

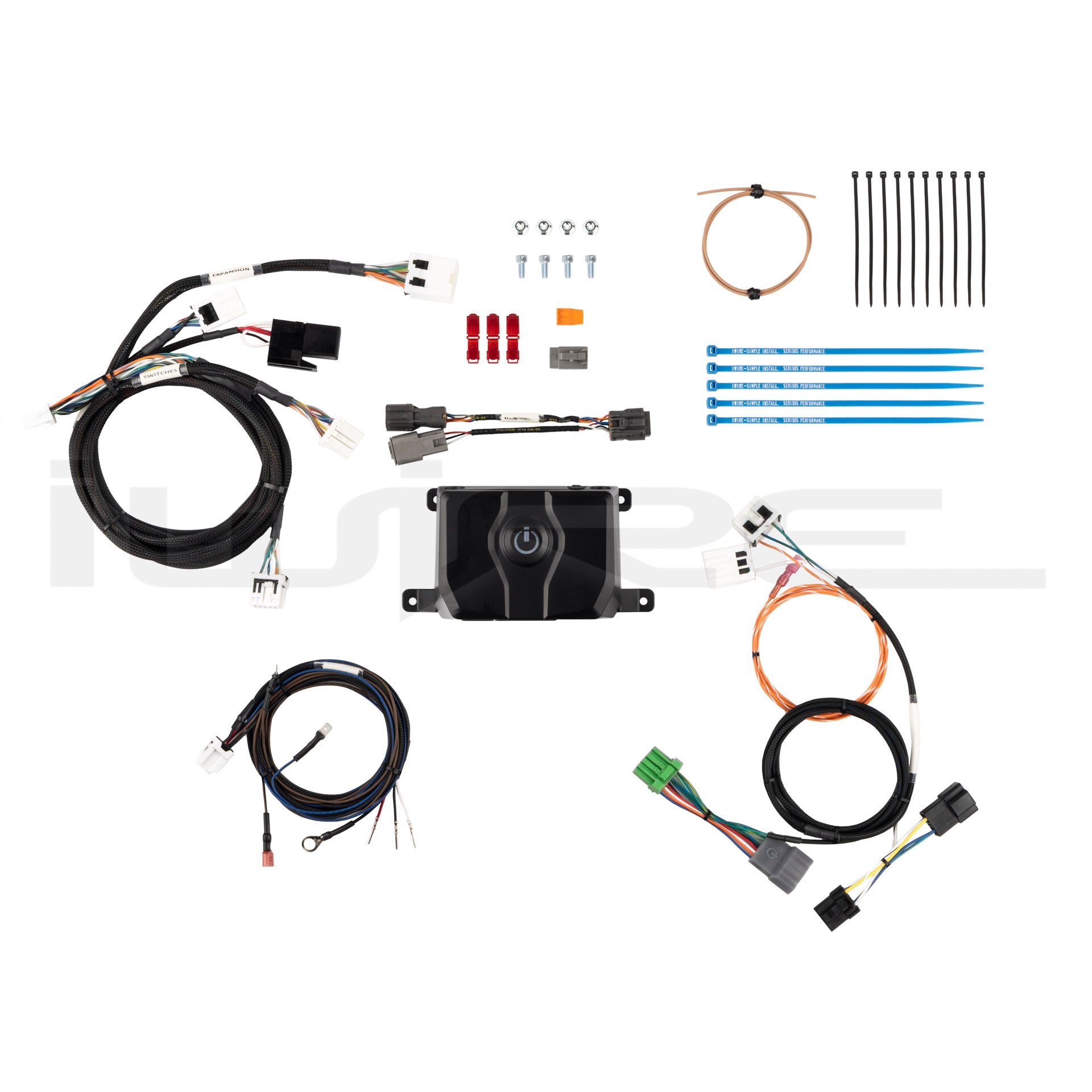

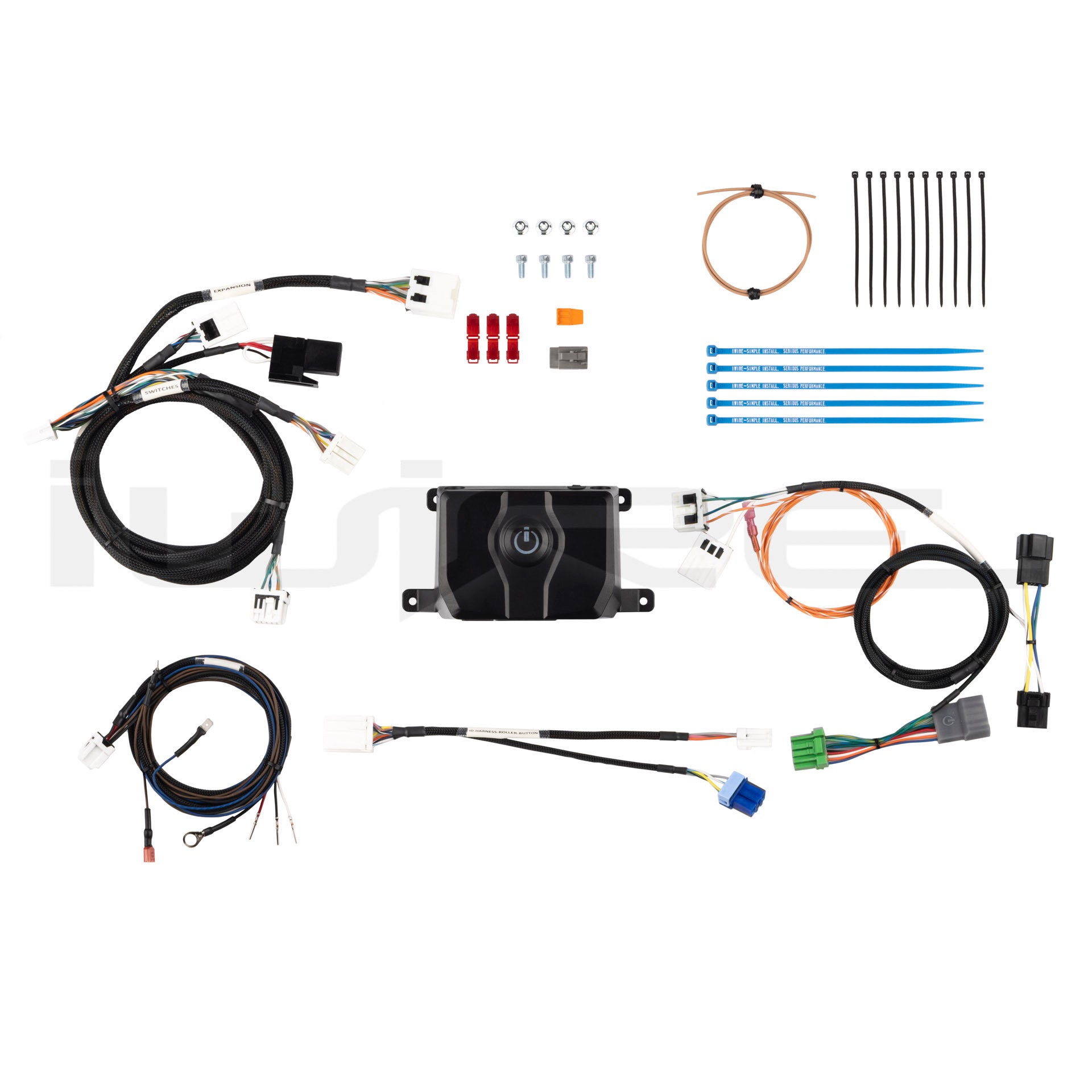

The iDCCD will come with the transmission adapter as part of the kit. If you already have the adapter harness, please use the code "Adapter" at checkout to receive a discount on the part's value. However, if you use the code but do not have the adapter, we will not ship that part, and you will need to purchase it separately.

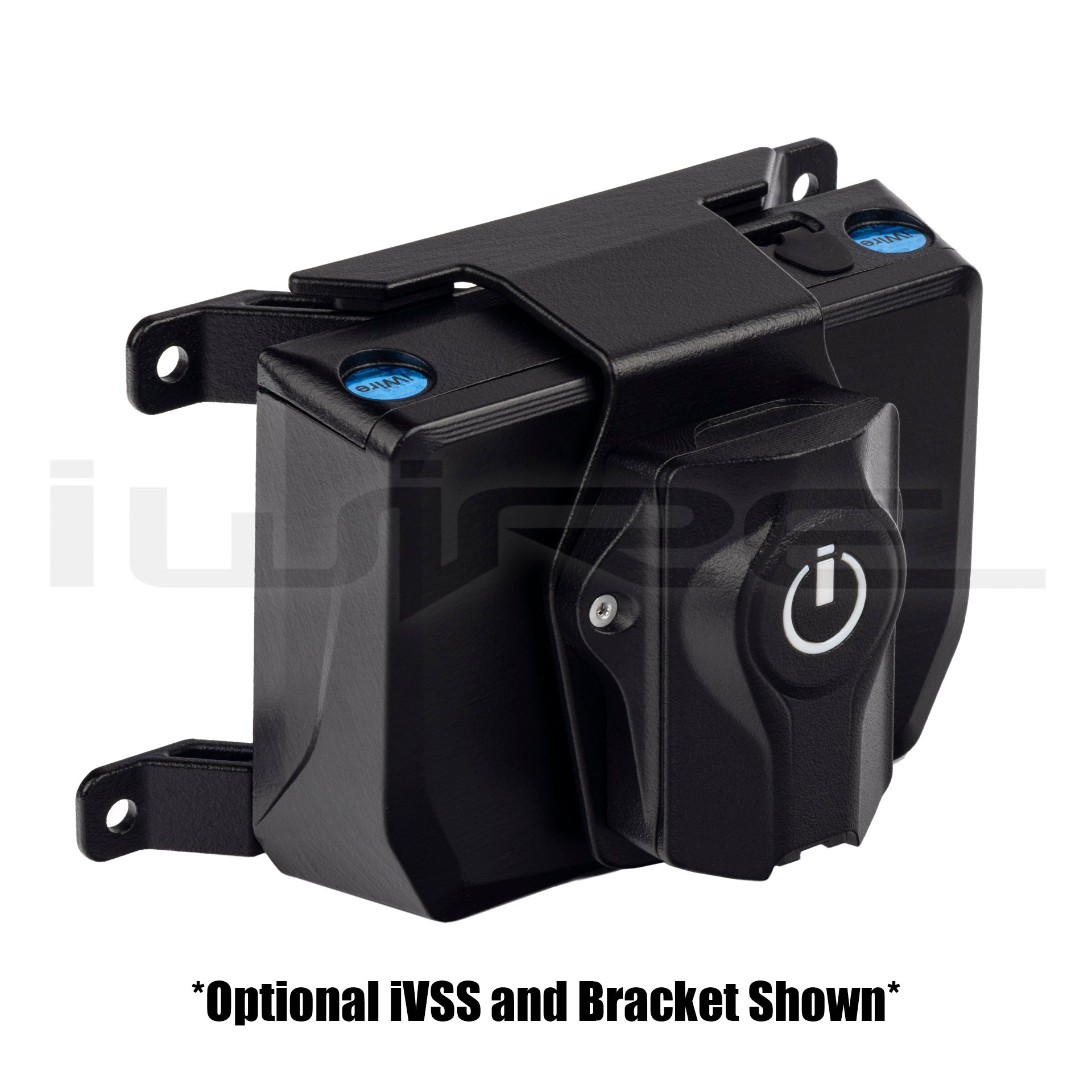

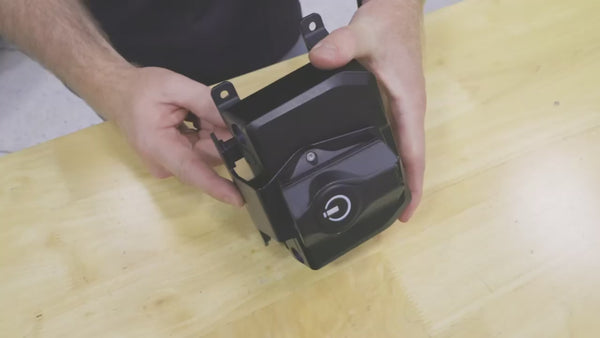

If you already have our iVSS unit, you'll want to add the iVSS Adapter Bracket to bridge iVSS and iDCCD into one simple mounting solution.

• https://iwireusa.com/collections/transmission-swap-products/products/ivss-to-idccd-mounting-bracket

Each iDCCD model type will have unique software configurations, bracketry, and harnesses, so we will release vehicle fitments in stages as quickly as well can. The expected release schedule is below, but is still subject to change. All models are expected to be released by the end of 2025.

Already released

• CANbus GR Chassis
  • 2008-2014 WRX
  • 2008-2014 STi

Up Next

• Analog Impreza/Forester Models
  • 1993-2001 Impreza (all)
  • 1998-2008 Forester (all)
  • 2004 STi
• CANbus VA Chassis
  • 2015-2021 WRX
  • 2015-2021 STi
• CANbus VB Chassis
  • 2022-2025 WRX
• Analog STi models with CANBus DCCD Systems
  • 2005-2007 STi
• Other Models
  • Legacy, Outback, Baja, etc.

Initial Feature List. Many more updates are to come in the future. This is just the beginning, folks!

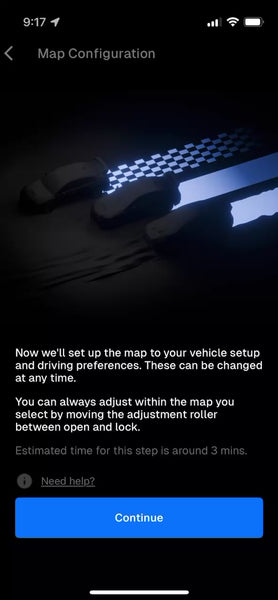

iWire Connect App Integration

• Year and model options for vehicle-specific configurations
• Select your switch and display types
• Pick your specific DCCD-equipped transmission for additional customization
• Live data display
• Many more options

Vehicle Compatability

• 2002-2007 WRX utilizing a DCCD-equipped transmission

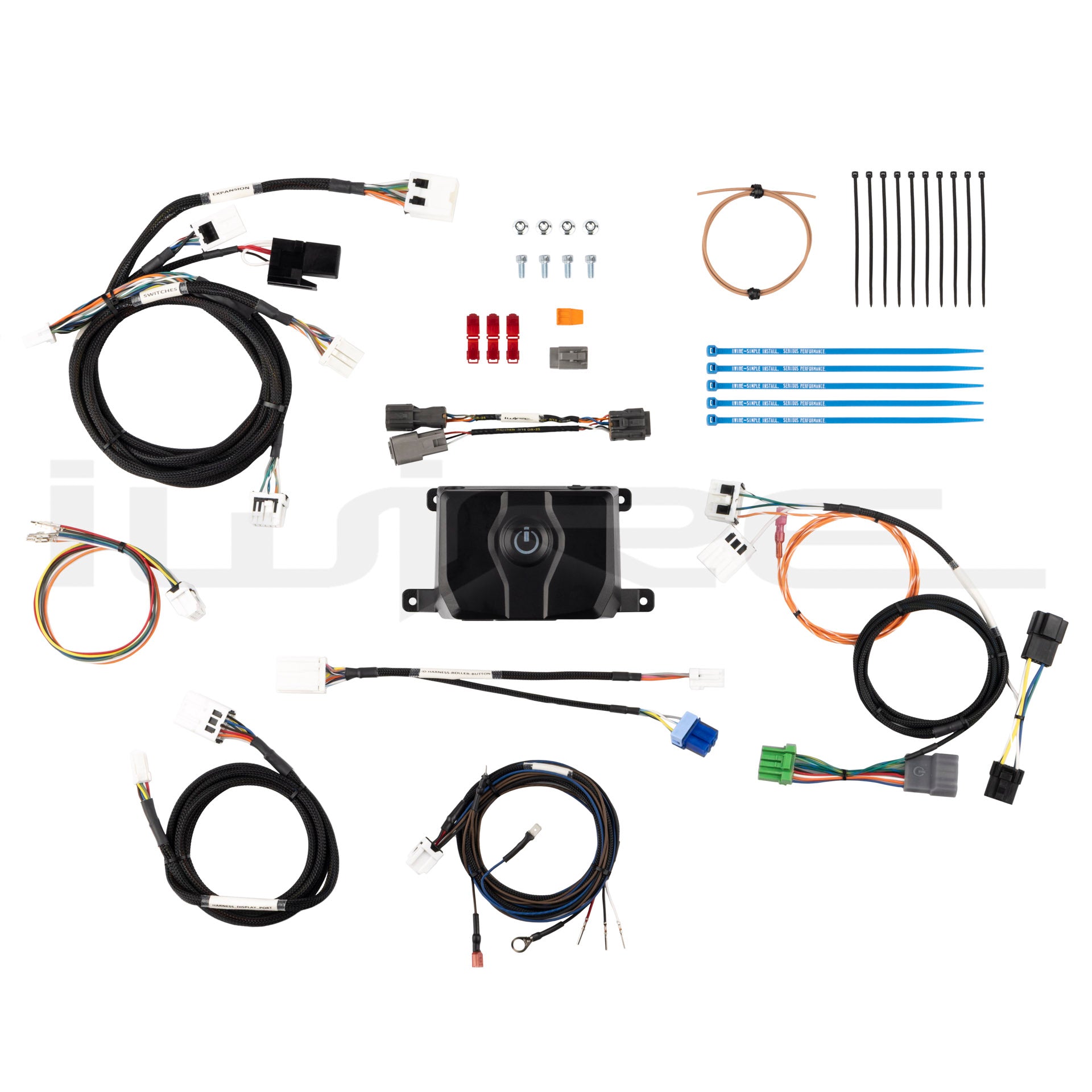

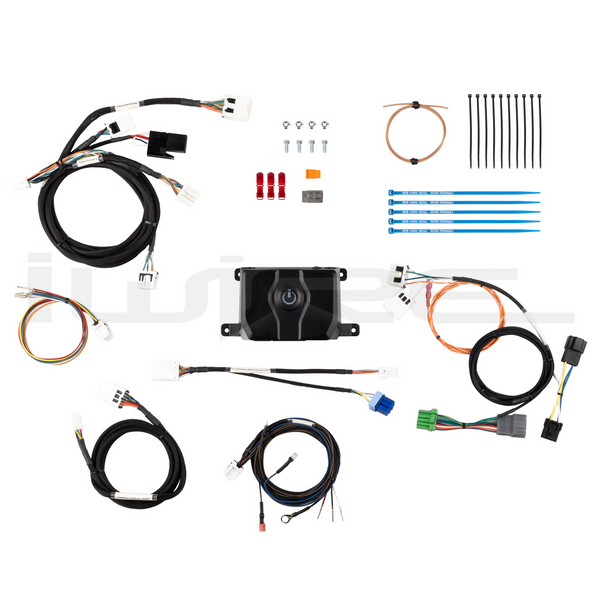

• Plug-and-Play Harness
• Brackets for OEM mounting
• iVSS Adapter for clean installation

3 Base Maps with user adjustment within the maps for fine-tuning

• Street
• Snow/Dirt
• Track

Display Options

• App only display

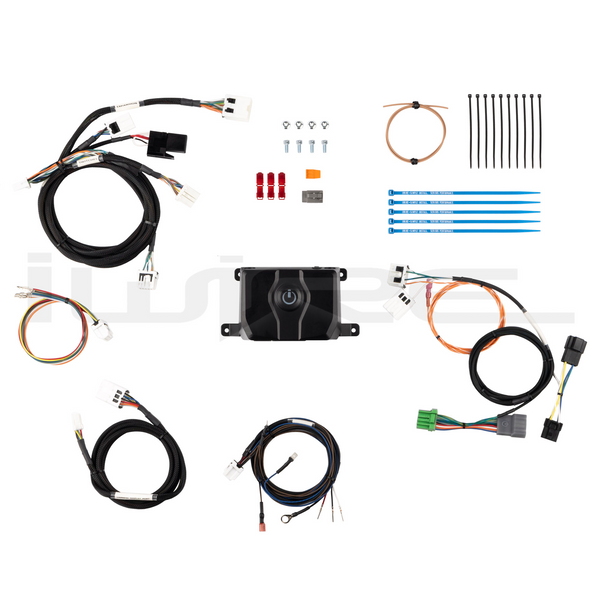

• Analog cluster display (Includes 1993-2007 STi Clusters)

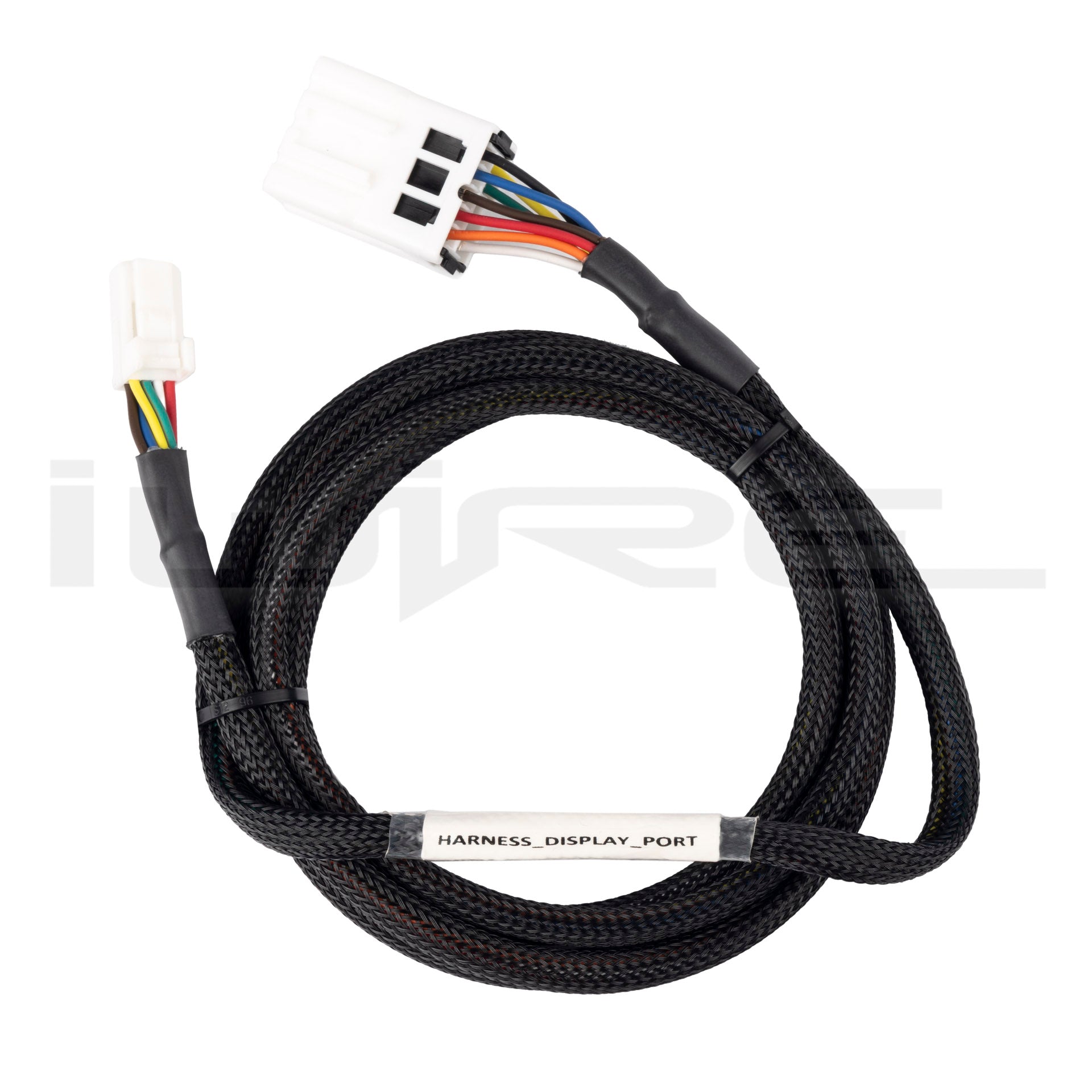

  • 7x dimmable display outputs (low-side)
  • 1x 12-volt power source for analog display
• CANBus cluster display for STi models
• 2x 0-5 volt outputs for Digital Dashes, Loggers, and Standalone ECUs

Switch/Control Options

• App Only Controls - No external switches required
• External Analog Switches

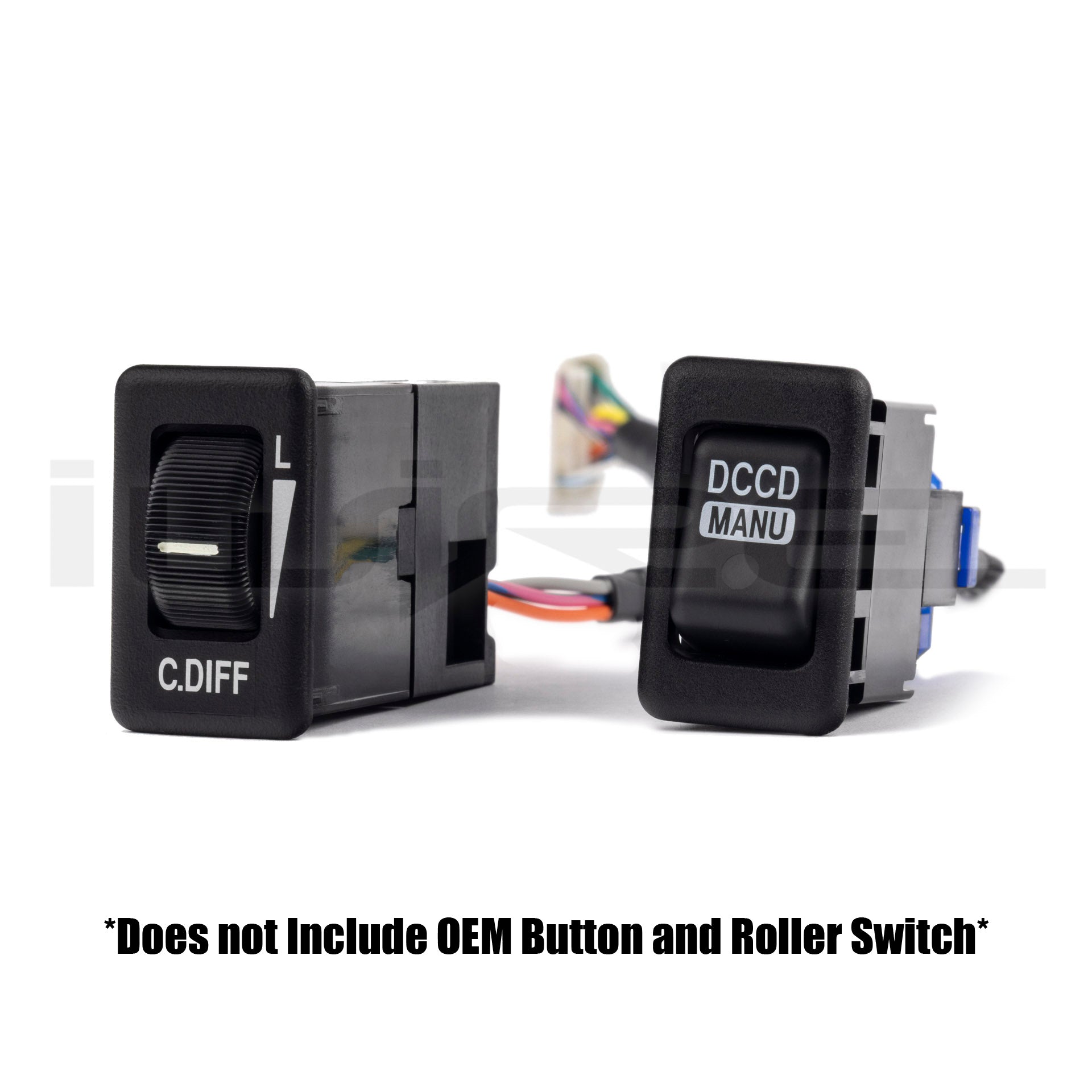

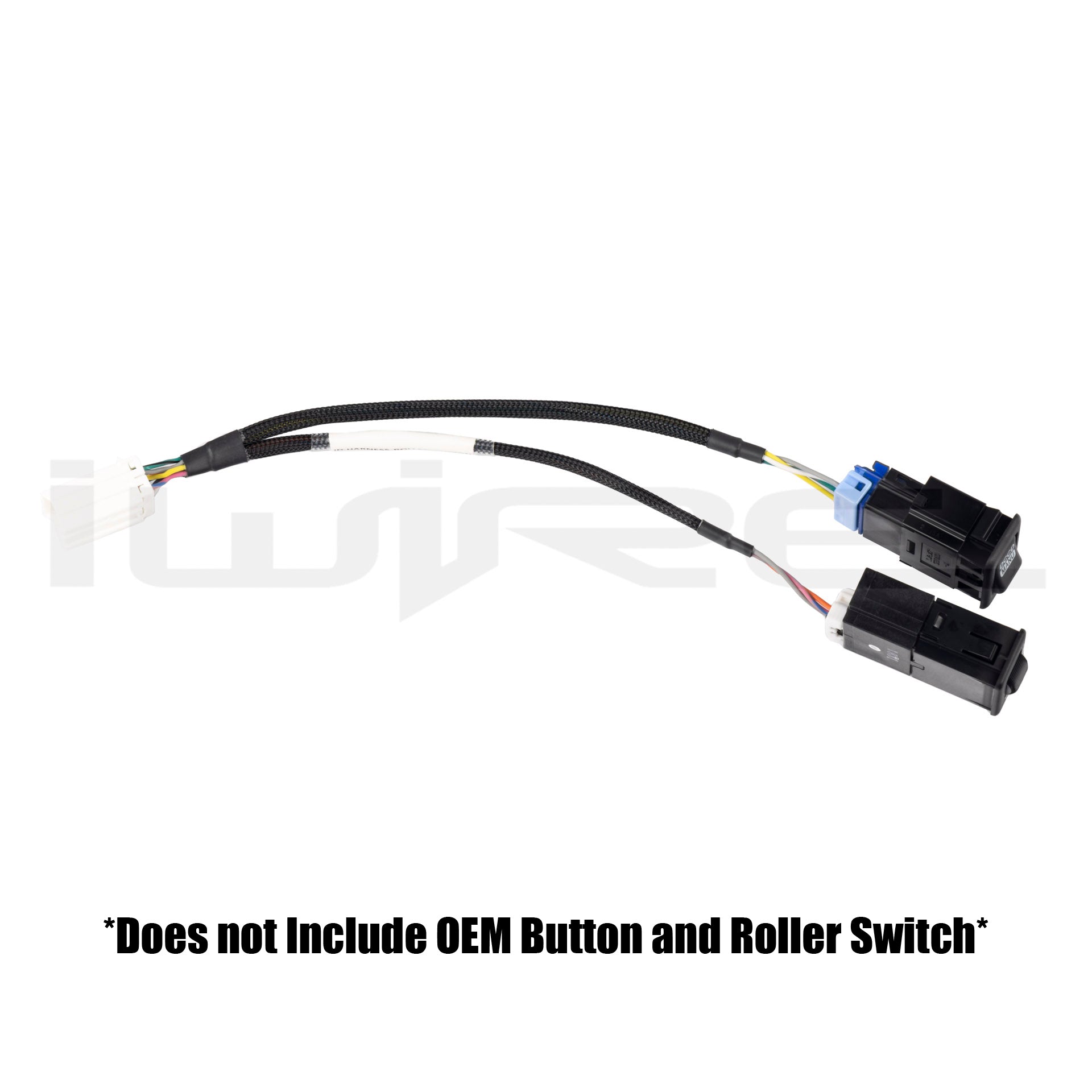

  • OEM Button and Roller
  • SI-Drive

Analog Input Types

• Vehicle Speed
• Brake Switch
• Throttle Position
• RPM

• Vehicle Accelerometer
• Vehicle Lateral G
• Vehicle Yaw Rate
• G-Sensor On-board

• Neutral Position

A Few of the Additional Features to Come

• Additional Maps
• Additional Map Customization
• Custom-programmed user-defined inputs
• Datalogging
• CANbus WRX to STi cluster conversion with DCCD display
• GPS integration

• CANbus features (inputs/outputs)

For those still waiting for your vehicle fitment to become available.

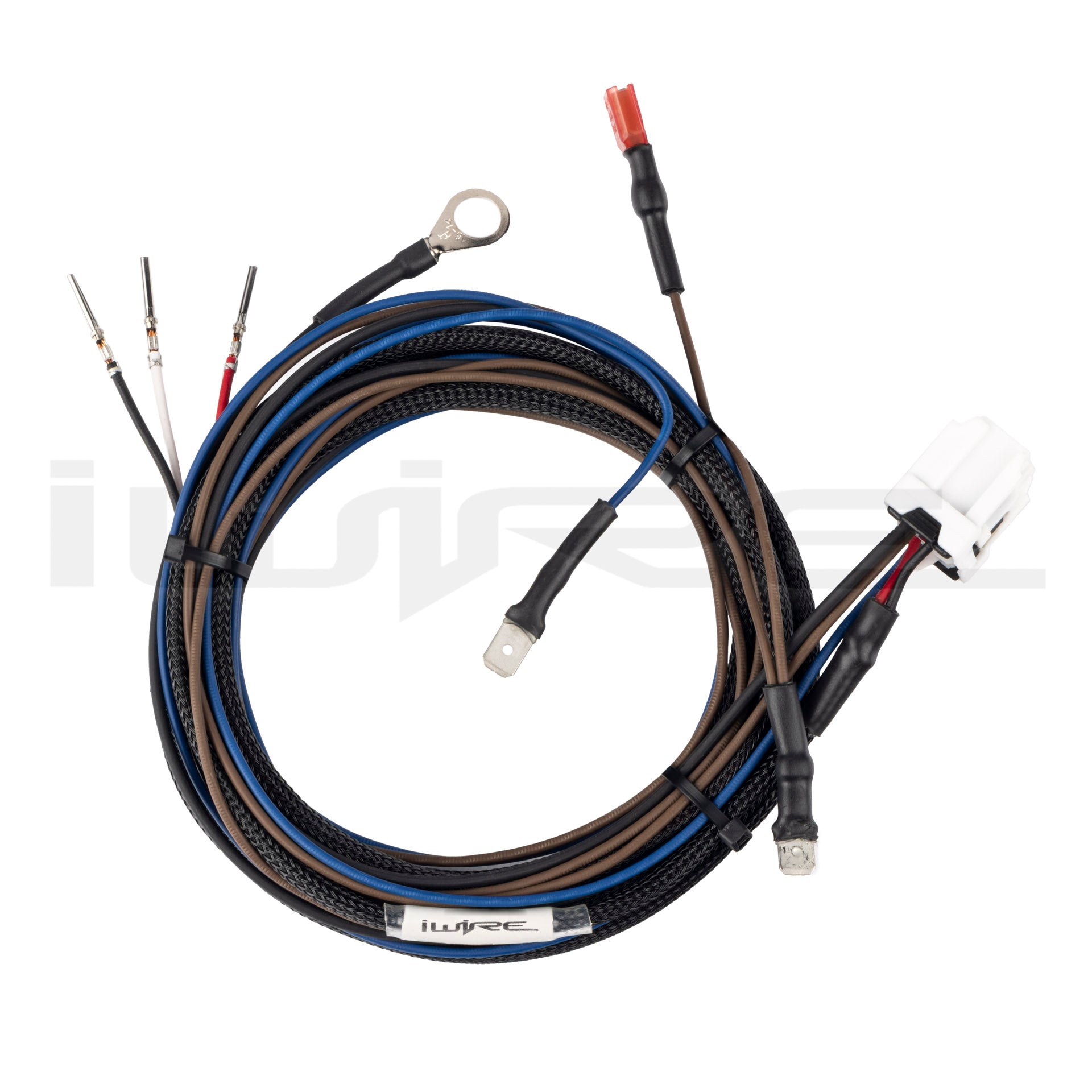

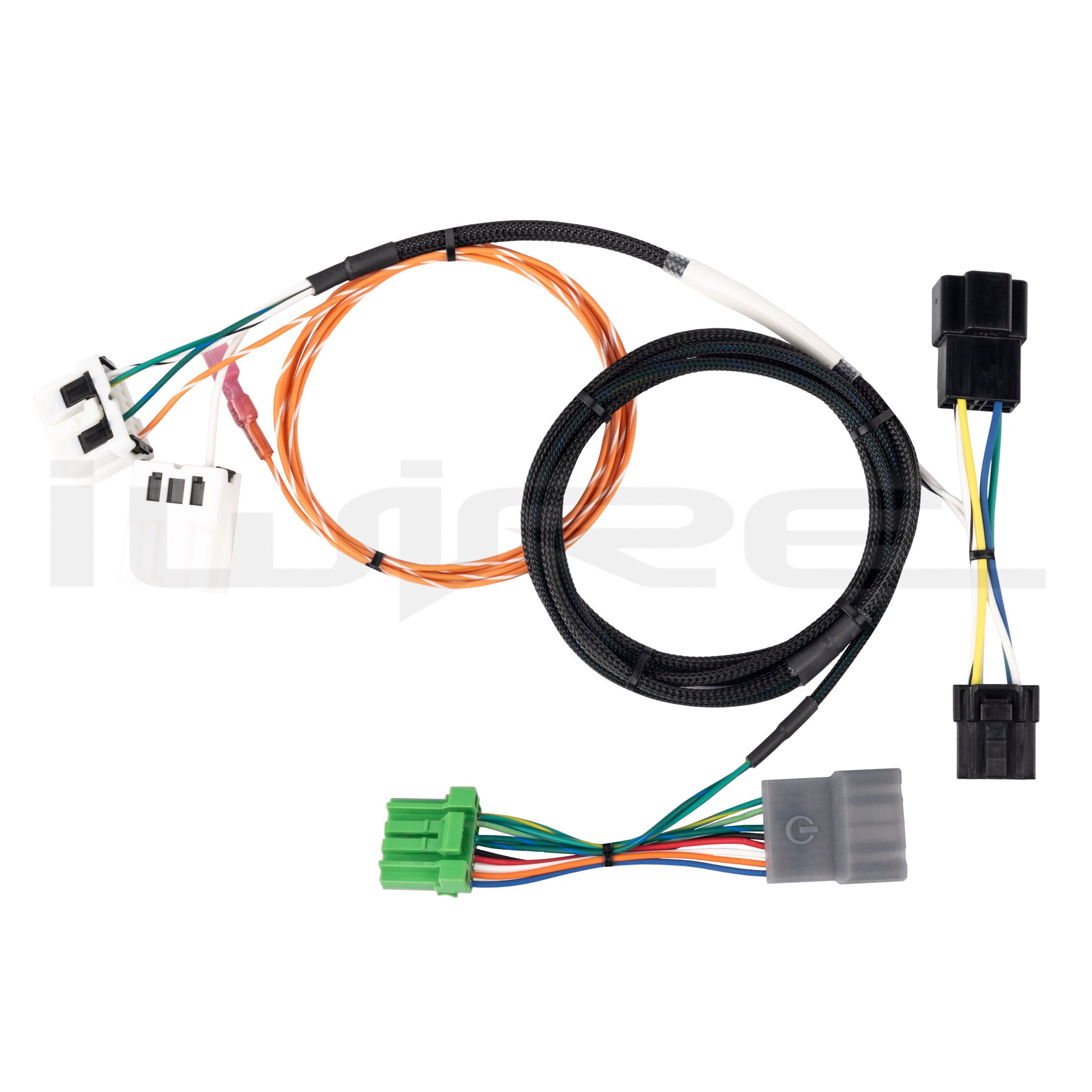

Please purchase our transmission adapter by clicking here. You'll need this adapter to complete the swap and ensure that the reverse lights and neutral position switch function properly. When iDCCD is available, you can use the discount code "Adapter" to receive a discount equal to the value of the purchased adapter.
