Plug Spotlight - MAF Plugs

Plug Spotlight - MAF Plugs

Apr 15, '21

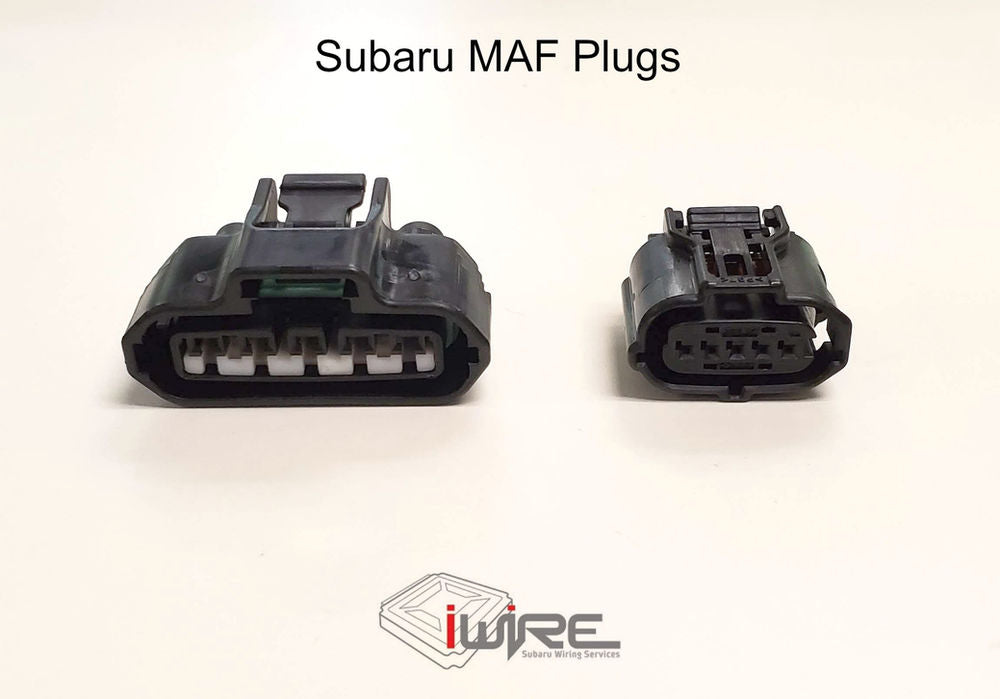

In this plug spotlight we discuss the Subaru MAF plug. MAF stands for Mass Air Flow. The sensor that this plug connects to is actually a combination sensor which means it has two inputs in one; the MAF and the IAT (Intake Air Temperature). The sensor is reading how fast the air is coming into the engine as well as what temperature the air is. Cold air is going to be more dense than hot air so the ECU needs to see both air speed as well air temp so it can adjust appropriately.



The MAF plug is also used in Speed Density tuning. However, the connector is converted to utilize only the IAT information from a new sensor near the throttle body. The IAT and MAP (Manifold Absolute Pressure) sensor are used in a calculation by the ECU to determine how much air is coming into the engine. Check the bottom of this post for more info on our Speed Density wiring kits.



Subaru has changed this plug over the years. We'll start with the newer cars and work our way backward. We generally have replacements for some of the early 90s models as well, so just ask if you need something that isn't shown.




Most modern cars.


Compatible Cars:
2008 to Current WRX
2008 to Current STi
2009 to Current Forester
2009 to Current Forester XT
2008 to Current Legacy
2010-2012 Legacy GT
2008 to Current Outback
2010-2012 Current Outback XT


Click here to purchase.




Typically for 2002-2007 models.


Compatible Cars:
2002-2007 WRX
2002-2007 STi
2005-2008 - Forester
2004-2008 Forester XT
2005-2007 Legacy
2005-2009 Legacy GT
2005-2007 Outback
2005-2009 Outback XT


Click here to purchase.





Generally found with JDM V5/6 engines


Compatible Cars:
1999-2000



Click here to purchase.




Most commonly seen on JDM EJ20K models.


Compatible Cars:
1997-1998


Click here to purchase.


As mentioned above, we carry several options for Speed Density wiring kits.


This 2002-2007 Speed Density Kit is compatible with:


2002-2007 WRX
2002-2007 STi
2005-2008 - Forester
2004-2008 Forester XT
2005-2007 Legacy
2005-2009 Legacy GT
2005-2007 Outback
2005-2009 Outback XT


Click here to purchase.

This 2008+ Speed Density Kit is compatible with:


2008 to Current WRX
2008 to Current STi
2009 to Current Forester
2009 to Current Forester XT
2008 to Current Legacy
2010-2012 Legacy GT
2008 to Current Outback
2010-2012 Current Outback XT


Click here to purchase.




#speeddensity #MAF #IAT #SD
