Plug Spotlight - TGV Plugs | iWire Subaru Wiring Solutions

In this blog post we highlight TGV (Tumble Generator Valve) connectors for your Subaru engine.

What do TGVs Do? When the engine is at idle, the TGVs close, forcing the incoming airflow through a smaller passage to increase the swirl of the air/fuel mixture, resulting in cleaner engine operation.

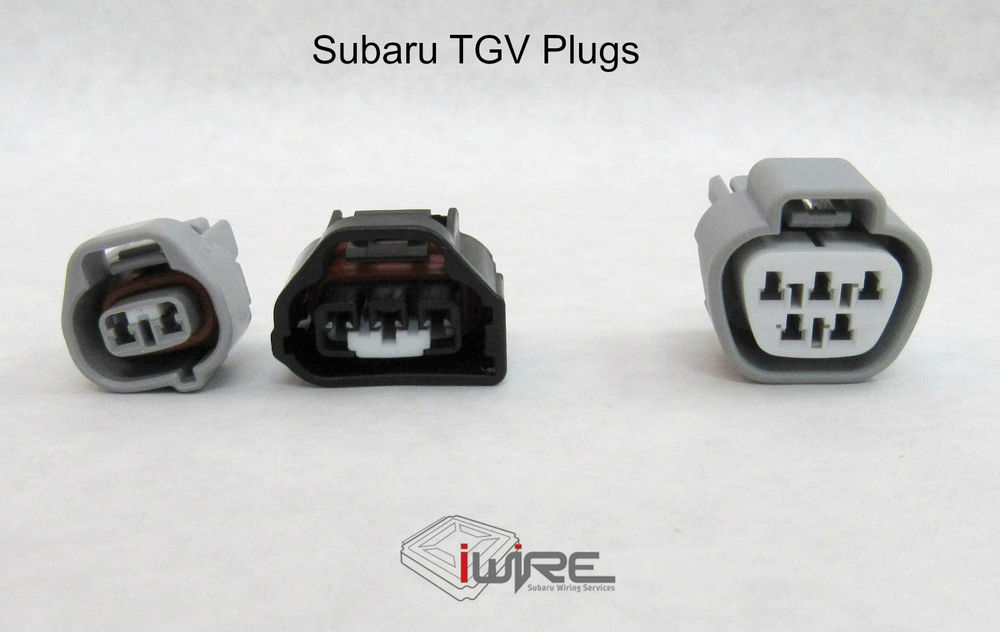

Subaru TGV Plugs come in 3 pin and 5 pin versions. The 5 pin style is used in later Subaru models and combines the older 3 Pin TGV Sensor and the 2 Pin TGV Motor Sensor into a single plug that does both functions.

Some people delete their Tumble Generator Valves (TGVs) mechanically, but you'll want to leave the TGV Plugs in the harness for Cobb Custom Features like flex fuel, fuel pressure, and wideband input. If you are saying to yourself, "now ya' tell me!" there is no need to fret, you can purchase one of our TGV pigtails (link below) and get it fixed right up.

We also have TGV Connector Covers if you leave the TGV Connectors unplugged so you don't get dirt or oil into your wiring harness.

5 Pin TGV Plug

Compatible Cars:
2007-2012 Legacy (Turbo)
2007-2009 Outback (Turbo)
2007-2021 STI
2008-2026 WRX
2009-2018 Forester (Turbo)
2012-2026 Crosstrek
2013-2026 Impreza (Non Turbo)
2014-2026 Forester (Non Turbo)
2019-2026 Ascent
2020-2026 Legacy Turbo
2020-2026 Outback Turbo

3 Pin TGV Sensor Plug

Compatible Cars:
2001-2006 JDM WRX
2001-2006 JDM STi
2002-2007 WRX
2004-2008 Forester XT
2004-2006 STI
2005-2006 Legacy GT
2005-2006 Outback XT

TGV Motor Plug

Compatible Cars:
2001-2006 JDM WRX
2001-2006 JDM STi
2002-2007 WRX
2004-2006 Baja XT
2004-2008 Forester XT
2004-2006 STI
2005-2006 Legacy GT
2005-2006 Outback XT
