Subaru Air Conditioning Pressure Sensor Switch
Alternate Part Names: Compressor plug; Compressor clutch switch; AC Condenser; AC Dryer.
Associated Subaru Part Numbers: 73111FA131; 73111FA133; 73111FA132
Pigtail Wire Color Options
All Black Wires
We will pigtail each connector slot with a generic black wire. The wire gauge will be adjusted for the application. For example, a radiator fan plug will have larger gauge wires than a throttle position sensor connector, but both will come with black wires.
Color Coded Pigtails Matched to Your Vehicle - No more guessing!
If you purchase a pigtail and select the "Vehicle Matched" option, we will use iWire's expertise with Subaru electrical systems to wire the pigtail to your vehicle's specifications, including wire color and gauge. This makes things easier if the connector has broken off or melted.
Note for Color-Matched Pigtails: Please enter your information in the box under the header "For Pigtails: Car Model and Year" so we know which vehicle the connector is intended for.
Wiring Diagram IDs: A53; B24; B25; B128; D87
Housing Only = Connector only and lock (if applicable).
Connector Kit = Connector with loose terminals and seals. Kits include one extra terminal and seal.

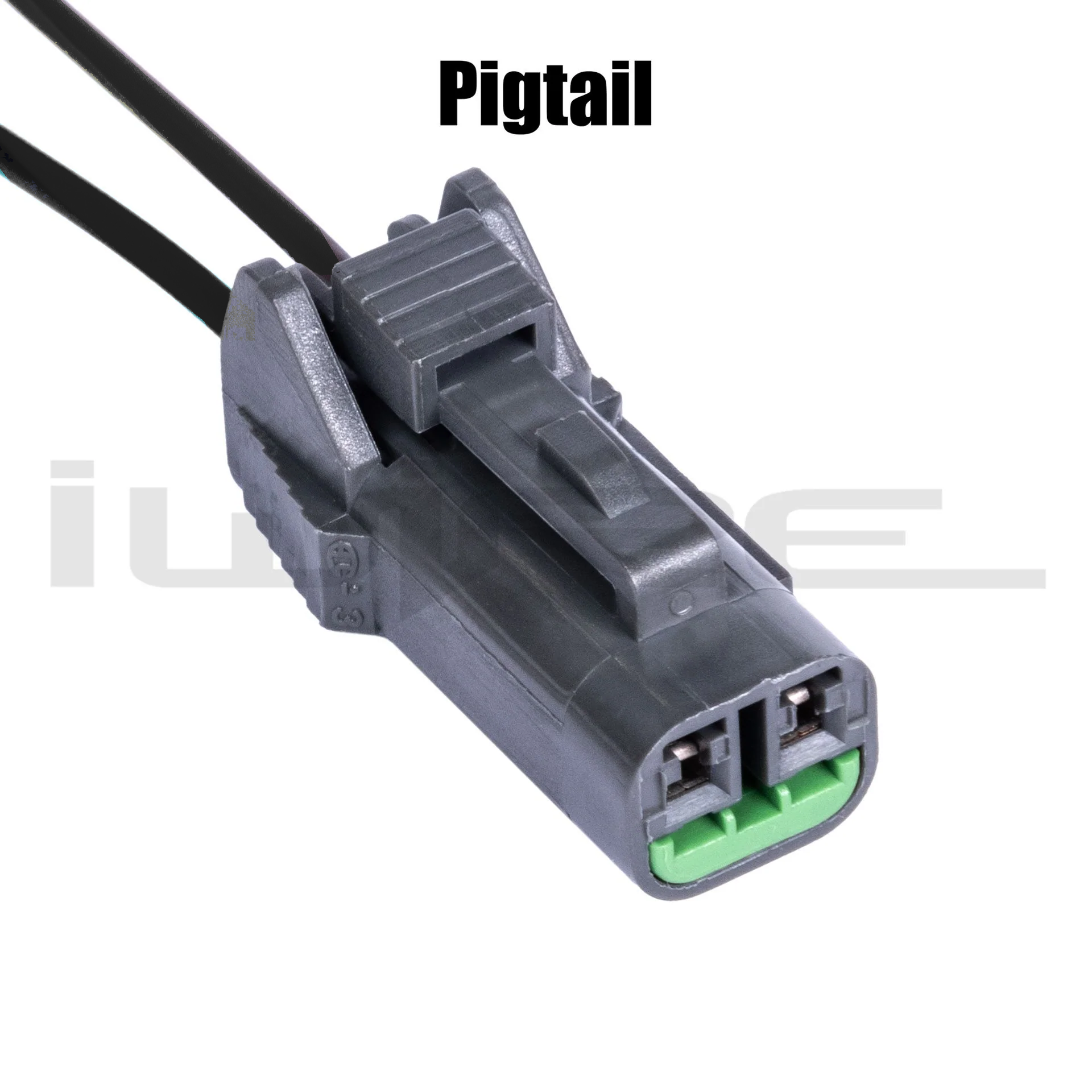

Pigtail = Prewired connector, includes 12 inches of wire per terminal.

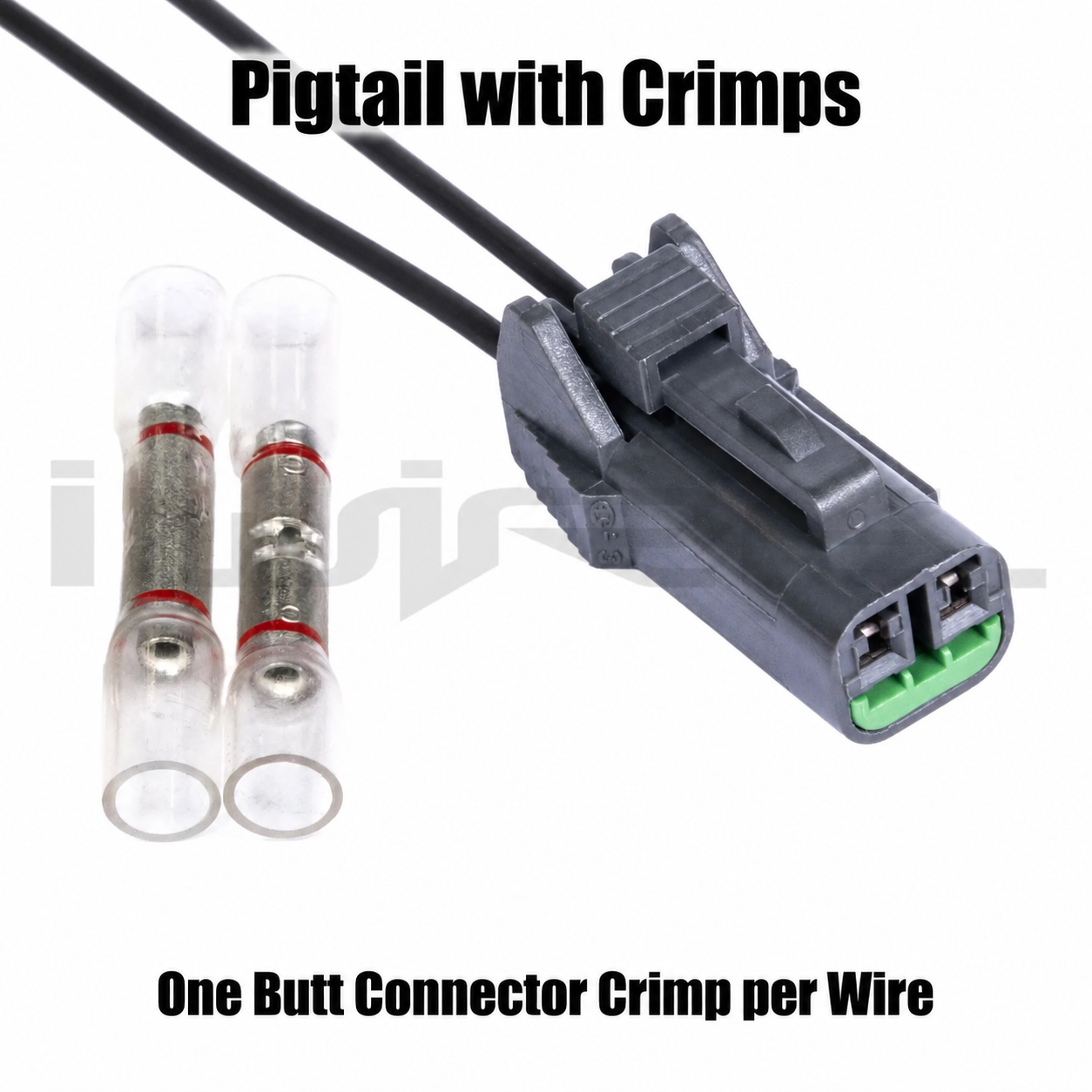

Pigtail with Crimps = Our pigtail option with one butt connector (crimp) per wire for easy install, includes 12 inches of wire per terminal.
For helping installing your connector, see our tips and tricks page!
